Heating, Ventilation, and Air Conditioning (HVAC) system is an essential part of modern vehicles. It helps regulate the temperature and humidity inside the car to provide a comfortable driving experience. One of the critical components of the HVAC system is the blend door actuator. In this article, we will discuss what blend door actuator is, its purpose, common problems, and how to fix them.
What is Blend Door Actuator?

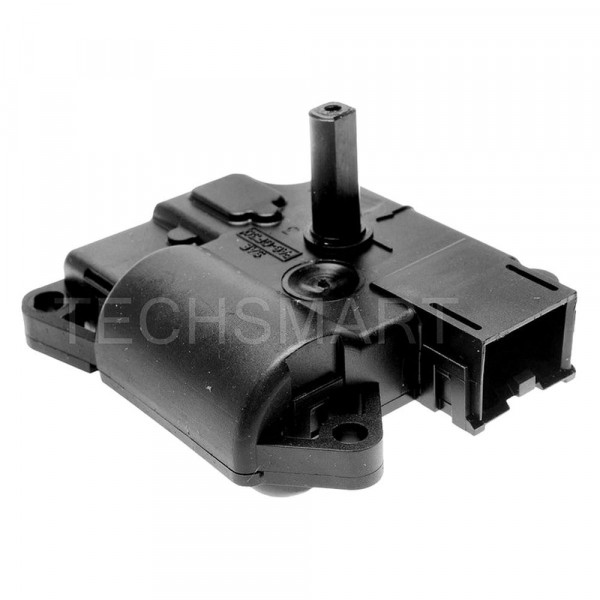

A blend door actuator is a small motor that controls the blend door in the HVAC system. The blend door is a flap that regulates the flow of hot and cold air in the car's cabin. The actuator receives signals from the climate control module and moves the blend door to the desired position. It can be a stepper motor or a DC motor, depending on the car's make and model.
The blend door actuator is usually located behind the dashboard, near the HVAC unit. It can be accessed by removing the dashboard or through the glove compartment. Some cars have multiple blend door actuators to control the temperature in different zones of the car.
How does Blend Door Actuator Work?
The blend door actuator receives signals from the climate control module, which is responsible for monitoring the temperature and humidity inside the car. The module uses data from various sensors, such as the cabin temperature sensor, outside temperature sensor, and humidity sensor, to determine the desired temperature. It then sends signals to the blend door actuator to move the blend door to the correct position.
The blend door actuator can move the blend door in different directions, depending on the car's HVAC system. For example, in a single-zone system, the actuator can move the blend door from the hot to cold position or vice versa. In a dual-zone system, the actuator can move the blend door in two directions to control the temperature in different zones.
Common Problems with Blend Door Actuator
Like any other car component, the blend door actuator can fail over time. Some of the common problems with blend door actuator are:
1. No Hot or Cold Air
If the blend door actuator fails, it can get stuck in one position, blocking the flow of hot or cold air. This can result in no air or only one type of air coming out of the vents.
2. Strange Noises
A faulty blend door actuator can produce strange noises, such as clicking or buzzing, when it moves the blend door. This can be an indication of a worn-out actuator or a loose connection.
3. Temperature Fluctuations
If the blend door actuator is not working correctly, it can cause temperature fluctuations in the car's cabin. This can be due to the blend door moving in the wrong direction or getting stuck in the middle position.
How to Fix Blend Door Actuator Problems
Fixing blend door actuator problems requires some mechanical knowledge and tools. Here are some steps to fix common blend door actuator problems:
1. Check the Fuses
The first step is to check the fuses related to the HVAC system. A blown fuse can cause the blend door actuator to malfunction. If the fuse is blown, replace it with a new one of the same rating.
2. Check the Wiring
If the fuses are okay, check the wiring connections to the blend door actuator. Loose or corroded connections can cause the actuator to malfunction. Clean the connections and tighten them if necessary.
3. Replace the Actuator
If the wiring and fuses are okay, and the actuator is still not working, it may need to be replaced. Remove the old actuator and install a new one of the same make and model. Calibration may be required after installation.
Conclusion
The blend door actuator is a critical component of the HVAC system that controls the flow of hot and cold air in the car's cabin. A faulty blend door actuator can cause problems such as no hot or cold air, strange noises, and temperature fluctuations. Fixing blend door actuator problems requires checking the fuses, wiring, and replacing the actuator if necessary. Regular maintenance of the HVAC system can prevent blend door actuator problems and ensure a comfortable driving experience.
