Everything You Need To Know About Trailer 4 Pin Plug In 2023

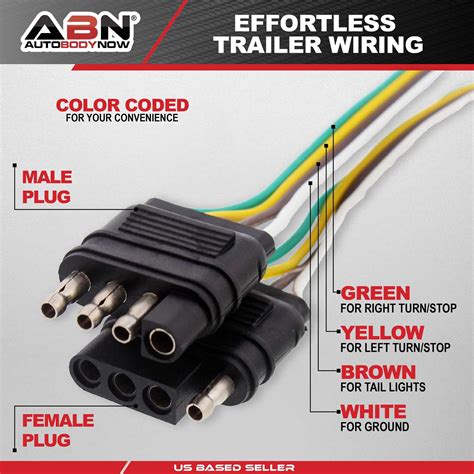

Car 6V/12V/24V 4 Pin Flat Trailer Plug Socket Wiring Connector Adapter from www.ebay.ca

Trailer 4 pin plug is an essential component that connects the trailer to the towing vehicle. It enables the transfer of power and signals from the vehicle to the trailer, allowing safe and reliable towing. In this article, we will discuss everything you need to know about trailer 4 pin plug in 2023, including its functions, types, installation, and maintenance.

The Functions of Trailer 4 Pin Plug

The trailer 4 pin plug serves two primary functions: power and signal transfer. The four pins on the plug represent four different connections, each with its unique function. The first pin is the ground wire, which connects to the metal frame of the trailer to provide a return path for the electrical current. The second pin is the tail light wire, which controls the trailer's tail lights, brake lights, and turn signals. The third pin is the left turn signal wire, and the fourth pin is the right turn signal wire.

The Types of Trailer 4 Pin Plug

There are two main types of trailer 4 pin plug: round and flat. The round plug is the older version and has been in use for many years. It has four pins arranged in a circular pattern and is commonly used for older trailers and tow vehicles. The flat plug, on the other hand, is the newer version and is more commonly used on newer trailers and tow vehicles. It has four pins arranged in a rectangular pattern and is easier to connect and disconnect.

The Installation of Trailer 4 Pin Plug

Installing a trailer 4 pin plug is relatively easy and can be done by anyone with basic electrical knowledge. The first step is to locate the wiring harness on your tow vehicle. It is usually located near the rear bumper and may be hidden behind a plastic cover. Once you have located the wiring harness, you need to connect the four wires on the trailer 4 pin plug to the corresponding wires on the harness. The ground wire should be connected to the vehicle's frame or chassis. The tail light wire should be connected to the brown wire on the harness, and the left and right turn signal wires should be connected to the yellow and green wires, respectively. After connecting the wires, you should test the trailer's lights and signals to ensure they are working correctly.

The Maintenance of Trailer 4 Pin Plug

Maintaining your trailer 4 pin plug is essential to ensure safe and reliable towing. The plug should be checked regularly for any signs of damage, such as corrosion or cracked wires. If you notice any damage, you should replace the plug immediately to avoid any potential safety hazards. You should also ensure that the plug is clean and free of any dirt or debris that may interfere with the electrical connections.

Conclusion

In conclusion, the trailer 4 pin plug is a vital component that enables safe and reliable towing. It serves two primary functions: power and signal transfer. There are two main types of trailer 4 pin plug: round and flat. Installing and maintaining your trailer 4 pin plug is essential to ensure safe and reliable towing. If you are unsure about installing or maintaining your trailer 4 pin plug, it is recommended that you seek professional help to avoid any potential safety hazards. Remember, safety should always be your top priority when towing a trailer.
